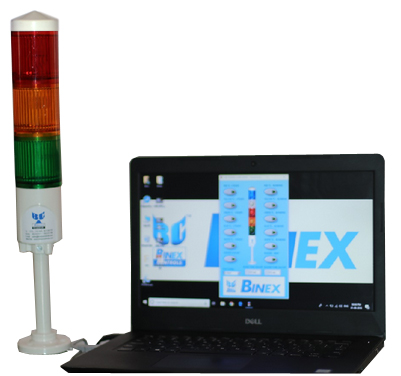

Binex USB Tower Lamp can be controlled directly from your computer, doesn’t need external power supply. Operates directly on USB. Tower lamp can be switched with Binex Software which is available with the Tower Lamp. We can provide hyper terminal codes for controlling the tower lamp with any software.
Flashing / Buzzer frequency rate can be defined and controlled by the software. Customization is available.
Unidirectional Lamps from single tower to six towers and more. Built-in flasher & audio output. Voltage available from 5 Volts USB. Its ultra-bright SMD Led type. It can be mounted in 5 ways. It’s a multi-functional tower lamp. Power consumption is 90% less than a filament type lamp the body is made of Industrial grade ABS Plastic Polycarbonate unbreakable lenses.
Wi-Fi Tower lamps enables you to control the Tower lamps on the Wi-Fi. The Tower Lamp has to be configured on your existing Wi-Fi Router’s local network. As long as your are on the same network which provides the IP to all your devices, you can control the Wi-Fi Tower Lamps either through a PC based app or through Wi-Fi enabled Smart Phone/Device. The Wi-Fi Tower Lamp works on TCP/IP Protocol and the command sets are provided, with which easily it can configured on any development environment like Vb.net, VC++, JAVA, ANDRIOD, etc.
Technical Specification |
 |
|
Model |
BCTL3 USB |
|
Available in |
1, 2, 3, 4, 5, 6 Towers and many more |
|
Size |
Ø 60mm, height 300mm (without stand) |
|
Type |
Multi LED/SMD (super bright) |
|
Colour |
Red, Yellow, Green, Blue, White, Amber |
|
Voltage |
5V DC USB |
|
Mode |
Flashing / Steady/ Buzzer. |
|
Lense |
Polycarbonate polished diamond cut |
|
Visibility |
Unidirectional |
|
Body |
ABS industrial grade |
|
Mounting |
• Base mounting: M-4*3 Nos. PCD 44. |
|
| Flashing Rate | Flashing frequency & lamp can be defined in the software minimum flashing rate 0.1 to 10 second & above | |
Connectivity Software |
Wi-Fi LED Tower Lamps |
• Binex Tower Lamp Software |
|
 |
 |
Dimensional Diagram of BCTL3 USB :
Dimensional Diagram of BCTL3 USB With Mounting Stand :
Tricolour Indicators - Technical Specification |
||
We have introduce a Tricolour, Dual Colour Indicators for automation industry, LED Bus Bar Indicators with check nut Panel type / Pin Type Mounting is a direct replacement to the 25/60 W filament bulbs 220V AC (Pin Type Holder). Gives a very long life. Extremely Low power consumption and totally vibration proof. Can be used on Over Head / EOT cranes / hoists where replacement of bulbs is extremely difficult also is used as Panel type indication, which is available in Flashing Type. Voltages available: 12 TO 220 VAC/DC 440VDC, also available in 22.5 Ø cut out panel mounting type. These lamps dissipate negligible heat, Power consumption is 90% less than a filament type lamp the body is made of ABS Plastic Polycarbonate unbreakable lens. |
||
PARAMETERS |
DOME |
 |
Operating Voltage |
AC - 12 / 24 / 110 / 220 |
|
Colour |
Red / Green / Amber |
|
Body Material |
ABS |
|
Lense Material |
Poly Carbonate |
|
Cutout Dimensions |
22.5 mm Ø |
|
Terminals |
1.5 sq. mm |
|
Body Shape |
Dome |
|
Legends |
NA |
|
Flashing |
Optional |
|
Sound (Built in Buzzer) |
NA |
|
Power Consumed |
60mA@ 24 VDC |
|
|
|
Binex Tower Lamp Mounting :
|
 |
 |
 |
|
Angular Mounting |
Base Mounting |
Direct Mounting |
Stand Mounting 22.5 dia |
Foldable Mounting |
