Miniaturized Inductive Sensors

Cubic And Cylindrical Miniaturized Inductive Sensors

Cubic And Cylindrical Miniaturized Inductive Sensors

REQUEST A QUOTE


Cylindrical Models: from ø3 mm diameter to ultrashort M8 diameter; shielded models: standard and extended distance; cable or M8 plug output.

Cubic models: 5x5 mm and 8x8 mm stainless steel housing. Completely shielded, with standard, long and extended distance.

Plastic models; compact, botyh shielded and unshielded, long-distance.

Cable or M8 Plug exit.



M8, M12, M18 Inductive with AC/DC Supply Voltage - V3E1, V3M1, V3K1, V3T1 Series



Special Features
• Operating voltage:20...250 Vac/Vdc
• Sensing range: Shielded 1.75mm, Unshielded 3 mm (V3E1), 4mm, Unshielded 6 mm (V3M1), 6mm, Unshielded 10mm (V3K1), 12mm, Unshielded 18mm (V3T1)
• NO/NC Output selectable, if DC supplied
• Cable or M12 Plug exit (Dual Keyway)
• IP67 protection degree



Technical Specification

REQUEST A QUOTE


Model

IL45

Diamension

40mm x 40mm x 65mm

Long Distance Shielded

20mm

Long Distance Unshielded

35mm

Temperature Range

-250C...+750CC

Protection Degree

IP67

Housing Material

PBT

Active Head Material

PBT

Plug

M8 and M12

Accessories for CV Optical Fibres

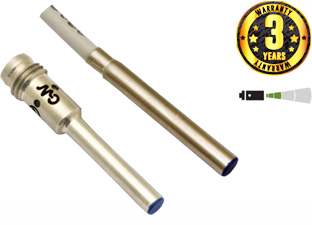

ø3 Cylindrical Miniaturized Inductive Sensors - AA Series

REQUEST A QUOTE


Special Features
• Complete range of cylindrical ultraminiaturized inductive Sensors ø3
• IP67 protection degree



Cylindrical Miniaturized Inductive Sensors

M4 Cylindrical Minaturized Inductive Sensors - AB Series

REQUEST A QUOTE


Special Features
• Complete range of cylindrical ultraminiaturized inductive Sensors M4
• IP67 protection degree

Miniature Photoelectric Sensors

ø3 mm Cylindrical Miniaturized - PA Series

REQUEST A QUOTE


Special Features
• Extremely reduced dimensions: ø3 mm x 22 mm length
• Supply voltage 10...30 Vdc, Output current 100 mA
• Led status indicator
• IP 67 housing protection
• Complete protection against electrical damages

Miniature Photoelectric Sensors

M4 Cylindrical Miniaturized - PB Series

REQUEST A QUOTE


Special Features
• Extremely reduced dimensions: M4 mm x 22 mm length
• Supply voltage 10...30 Vdc, Output current 100 mA
• Led status indicator
• IP 67 housing protection
• Complete protection against electrical damages

Cylindrical Miniaturized

ø4 mm Cylindrical Miniaturized Inductive Sensors - AC1 Series



Special Features
• Smooth stainless steel housing
• ø4 mm diameter
• Yellow output LED 3600 visible
• Available 2 m PVC cable models or M8 connector models
• IP 67 protection degree

Cylindrical Miniaturized Inductive Sensors

ø4 mm Cylindrical Miniaturized Inductive Sensors - PC1 Series

REQUEST A QUOTE


Special Features
• Cable and M8 plug versions
• Reduced dimensions: ø4 mm x 25 mm (cable)/38 mm (plug) length
• Supply voltage 10..30 Vdc, output current 200 mA
• Led status indicator
• IP 67 housing protection
• Complete protection against electrical damages

Cylindrical Miniaturized Inductive Sensors

M5 Cylindrical Miniaturized Inductive Sensors - AD Series



Special Features
• Extremely reduced models: M5 X 30mm (cable) / 38 mm (plug) lenght
• Operating voltage: 10...30 Vcc
• Output current: 100 mA
• LED output indicator
• Totally protected against electrical damages
• Cable and M8 plug output
• Stainless steel housing

Cylindrical Miniaturized Inductive Sensors

M5 Cylindrical Miniaturized Inductive Sensors - PD1 Series



Special Features
• Cable and plug versions
• Extremely reduced dimensions: M5 X 25 mm (cable) / 38 mm (plug) lenght
• Supply voltages 10...30 Vdc, output current 100 mA
• Output current: 100 mA
• LED status indicator
• IP 67 housing protection
• Complete protection against electrical damages

Cylindrical Miniaturized Inductive Sensors

ø 6.5 mm cylindrical miniaturized inductive sensors - AHA Series



Special Features
• Miniaturized dimensions : ø 6.5 x 20 mm (cable) / 30 mm (plug) lenght
• Operating voltage: 10...30 Vdc
• Output current: 100 mA
• LED output indicator
• Totally protected against electrical damages
• Cable and plug M8 output
• Stainless steel housing

Cylindrical Miniaturized Inductive Sensors

ø 6.5 mm Cylindrical Miniaturized Inductive Sensors - PH6 Series

REQUEST A QUOTE


Special Features
• Cable and M8 plug versions
• Reduced dimensions: ø 6.5 mm X 16mm (cable) / 29 mm (plug) lenght
• Supply voltages 10...30 Vdc, output current 200 mA
• LED status indicator
• IP 67 housing protection
• Complete protection against electrical damages

Cylindrical Miniaturized Inductive Sensors

M8 Cylindrical Miniaturized Inductive Sensors - AES Series



Special Features
• Miniaturized dimensions : M8 x 20 mm (cable) / 30 mm (plug) lenght
• Operating voltage: 10...30 Vcc
• Output current: 100 mA
• LED output indicator
• Totally protected against electrical damages
• Cable and plug M8 output
• Stainless steel housing

Cylindrical Miniaturized Inductive Sensors

M8 Cylindrical Miniaturized Inductive Sensors - PE6 Series

REQUEST A QUOTE


Special Features
• Cable and M8 plug versions
•  Extremely Reduced dimensions: M8 X 16mm (cable) / 29 mm (plug) lenght
• Supply voltages 10...30 Vdc, output current 200 mA
• LED status indicator
• P 67 housing protection
• Complete protection against electrical damages

Cylindrical Miniaturized Inductive Sensors

5x5 mm Cubic Miniaturized Inductive Sensors - IL5 Series



Special Features
• Complete range of cubic inductive Sensors IL8 series: 5x5x25 mm
• IP67 protection degree

Cubic Miniaturized Inductive Sensors

5x5 mm Cubic Miniaturized Inductive Sensors - PP1 Series

REQUEST A QUOTE


Special Features
• Extremely reduced dimensions: 5x5x25 mm length
• Supply voltages 10...30 Vdc, output current 200 mA
• LED status indicator
• IP 67 housing protection
• Complete protection against electrical damages

Cubic Miniaturized Inductive Sensors

8x8 mm Cubic Miniaturized Inductive Sensors - IL8/IL9 Series



Special Features
• Complete rang of cubic inductive sensors:
1. IL8 series: 8x8 mm with sensing head at the top
2. IL9 series: 8x8 mm with sensing head at the centre
• IP67 protection degree

Cubic Miniaturized Inductive Sensors

10x28x16 mm Cubic Miniaturized Inductive Sensors - IL1 Series

REQUEST A QUOTE


Special Features
• Compact dimensions: 10x28x16 mm
• Supply voltage 10...30 Vdc, output current 300 mA
• IP67 protection degree
• Complete protection against electrical damages

Cubic Miniaturized Inductive Sensors
