SAFETY SWITCH WITH GUARD LOCKING
Safety Locks

Safety and Reliability in Door-Opening Control

REQUEST A QUOTE

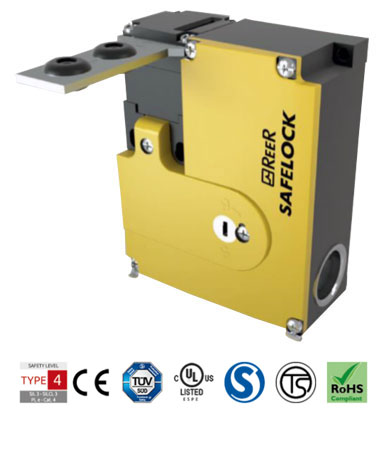

Safelock is a safety switch utilised in the protection of personnel when opening doors leading to dangerous areas.
It acts by monitoring and interrupting the safety circuit during dangerous scenarios. The solenoid locks and unlocks access to the dangerous area, guaranteeing safety until the danger has stopped.

Available models:
SLK-M
• Retention mechanism actuated by a spring and unlocked by ON current.
• Guard locking by spring force, release by applying voltage to the guard locking solenold

SLK-E
• Retention mechanism actuated by ON current and unlocked by spring.
• Guard locking by applying voltage to the guard locking solenoid, release by spring force

Characteristics



Housing

Reinforced thermoplastic

Actuating head material

Plastic or metal

Contact Material

Silver alloy, gold flashed

Number of guided contacts (door position)

2

Number of guided contacts (block monitoring)

1

Switching principle

Slow-action switching contact

Approach speed

Max. 20 m/min

Actuation frequency

1200 1/h

Actuating principle

Closed-circuit current

Forces

Locking force (Fmax): >1 kN (plastic), >2kN (metal) Locking force (FZh): 1,5kN 0,7kN (plastic), 1,5 kN (metal) Retention force:20N, Extraction force:30 N, Actuating force: 35N

Solenoid operating voltage

24V AC/DC-15%...+10%

Short circuit protection 4A
Switching voltage 12 V Min a 10 mA
Switching current 1 mA Min a 24 V
Power consumption
6 W
Protection grade IP67

Safety Levels

3 different safety functions according to the standard EN ISO 13489-1
Cat.1/PL c
1 Safelock + 1 safety relay AD SRE3C or 1 input of the Mosiac safety controller

Cat. 3/PL d
1 Safelock + safety relay AD SRE3C or 2 inputs of the Mosiac safety controller + fault exclusion according to the standard (EN ISO 13849-2)
1. Safelock + 2 Magnus RFID + safety AD SR 1 or 2 inputs of the Mosiac safety controller
2 Safelock + 1 safety relay AD SRE3C or 2 inputs of the mosiac safety controller

Cat. 4/PL e
2 Safelock + 2 safety relay AD SRE4C or 4 inputs of the Mosiac safety controller
