Fork Sensors

Micro Detectors

Forks Photoelectrics Sensors

REQUEST A QUOTE

For object or label detection; 2mm to 180mm width slit detection; 30mm to 120mm depth slit detection; red, infrared and laser emission; adjustable. Forks Photoelectrics Sensors

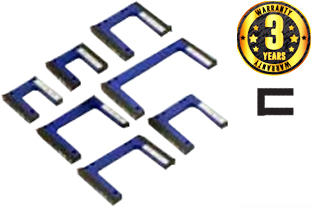

Photoelectric Fork for objects detection without regulation - FC5 Series


Special Features
• Plug and Play without adjustment
• High power RED LED emission
• Minimum size object detection 0,8 mm
• Metal housing
• Connettore M8 a 3 pins
• LED Indicator high visibility
• Switching frequency 4 KHz
• -10...+60 °C operating temperature range
• 3 wires: PNP or NPN, LO or DO
Photoelectric Fork

Photoelectric fork for objects detection with regulation - FC6 Series


Special Features
• Simple and accurate adjustment manually by -/+ buttons
• Infrared emission; LASER emission class 1
• Metal housing
• Light/Dark switching, selectable by button
• Minimum size object detection 0,2 mm (FC6I) and 0,05 mm (FC6L)
• -20...+60 °C temperature range
• M8 connectors (4pins): PNP/NPN, LO/DO
• Switching frequency 10 kHz
DC Miniaturised Cubic Photoelectric Sensors



Photoelectric fork Sensors for Labels detection - FC7 Series

REQUEST A QUOTE

Special Features
• Dynamic Teach-in or control panel and manual adjustment with -+/-" buttons
• Minimum object detection 2 mm (gap between labels). 2 mm (label size)
• Infrared emission
• Light/Dark switching, selectable by button
• Switching frequency 10 kHz
• M8 connectors (4 pins): PNP or NPN. LO/DO selectable
• -20 ...+60 °C temperature range
DC Miniaturised Cubic Photoelectric Sensors

Ultrasonic fork Sensors for Labels Detection - FC8 Series

REQUEST A QUOTE

Special Features
• Ultrasonic fork sensor for transparent labels, any opaque material with connector M8 4-pole
• Teach-in models with dynamic and remote teach
• Ultrasonic technology
• Small size easy to locate; aluminum case
• NPN and PNP, LO/DO total configurable
• Width slit detection 3 mm; depth slit detection 69 mm
• Maximum switching frequency 1.500 Hz
Ultrasonic fork Sensors for Labels Detection

Dual Beam Photoelectrics Slot Sensor for Sensor Edge Detection - FC3 Series


Special Features
• Dual Beam Photoelectrics Slot Sensor
• RIAC Output
• Light On/Dark on selectable by polarity inversion
• Approvals: CE
Dual Beam Photoelectrics Slot Sensor

Four Beams Fork Sensor for Belt Tracking Control - FC4 Series


Special Features
• Four Beams Fork Sensor for Belt Tracking Control
• Double Static outputs + alarm contact
• Approvals: CE

For Specific Fields
Photoelectric Barrier for Car-Washes, Compact Cylindrical Body, Highly performant, synchronized. Slot Sensor for edge detection, to be used on belt sanders, possibility to install a steering alert system.
Four Beams Fork Sensors

Photoelectric Forks for object detection with regulation - FC5 & FC6 Series


Special Features
• Plug and Play without adjustment (FC5)
• Simple and accurate adjustment manually by +/- buttons (FC6)
• High power RED LED emission (FC5), in-frared emission LASER emission (class 1) (FC6)
• Metal housing
• M8 connectors 3 and 4 pins
• Minimum size object detection 0.8 mm (FC5), 0.05 mm (FC6L), 0.2 mm (FC6I)
• -20 +60°C temperature range
Photoelectric Forks for object detection with regulation
