We are Manufacturer, Supplier & Exporter of Electrical Visual Voice Hooters and our setup is situated in Pune, Maharashtra, India.
Binex introduces first time in India the most Innovative Electronic Visual Voice Hooter with Built in Accept Facility. Low Power Consumption Can be used for TPM, POKE YOKE, KAIZEN & DCS. The only hooter of its kind which gives an audio output and has an visual indication and has a built-in accept facility, thereby saving on the cost of a contactor or relay. It acts as a single window annunciating system. Programmable Timer Hooter with Potential Free O/P’s. Routine Time Announcement System. Also can be controlled wireless. Available in Telephone Ringer, Siren, Musical, Melody, Multi Tone, Single Tone, Wireless and Economical models.
.
|
|||||
| Binex USB, Wi-Fi, IP Electronic Voice Hooters can be controlled directly from your computer, I/P signals by USB. Binex Hooter can be switched with Binex Software which is available with the Hooter. We can provide hyper terminal codes for Serial Communication codes for controlling the Hooter with any software. Customization is available. We can control up to six voice messages. |
|||||
Model |
BCHUSB |
||||
Available in |
Up to 6 messages |
 |
|||
Size |
92*92, 138*138, 310 mm*260mm*150mm |
||||
Type |
Voice Hooter, Single Tone, Multi Tone, Musical |
||||
Color |
Black & Red |
||||
Voltage |
6V-220V AC/DC, 440V AC, 5V DC USB |
||||
| Connectivity Software • Binex Electronic Hooter Software • Serial Communication codes available • Commands set for USB & Wi-Fi interface will be provided for Free. |
|||||
 |
|||||
|
|||||
 |
|||||
Cut Out Size |
92mm*92mm, 138mm*138mm, 310mm*260mm*150mm |
||||
Voltage |
12V ac/Dc, 24Vac/Dc, 48V Ac/Dc, 110v Ac, 220v Ac |
||||
Input |
Potential Free, Auxiliary, BCD input signal |
||||
Total O/P |
Single message to 250 messages & above |
||||
Visual O/P |
Yes |
||||
Voice Messages |
Air pressure high, Temperature low, ok/not ok, Gas leakage |
||||
Voice Output |
Trip...custom built in any language & music |
||||
|
|||||
 |
|||||
Cut Out Size |
22.5mm Ø |
||||
Voltage |
12V ac/Dc, 24Vac/Dc, 48V Ac/Dc, 110v Ac, 230v Ac |
||||
Total O/P |
Single Tone |
||||
Visual O/P |
NA |
||||
|
|||||
 |
|||||
Cut Out Size |
310 mm*260mm*150mm |
||||
Voltage |
12V ac/Dc, 24Vac/Dc, 48V Ac/Dc, 110v Ac, 220v Ac |
||||
No of Tones |
4 Tones |
||||
Mounting Arrangement |
Base Mounting |
||||
Body Color |
Siemens Grey |
||||
|
||||||
 |
||||||

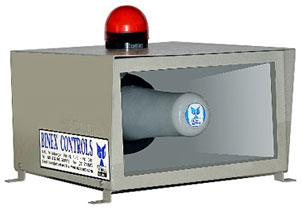

| Binex Electronic Weather-Proof Hooter with four tone, it’s also available in programmable voice hooter with weatherproof cabinet. Led Flashing Beacon Lamp can be attached on it for visual indication | ||||||
Cut Out Size |
180*130*100 |
|||||
Voltage |
12V ac/Dc, 24Vac/Dc, 48V Ac/Dc, 110v Ac, 220v Ac |
|||||
Total O/P |
Tones, voice |
|||||
Visual O/P |
Yes |
|||||
|
||||||
|
|||||
 |
|||||
| Binex Flameproof Hooter with four tones, it’s also available in programmable voice. Any Voice in Any language can be programmed in it. | |||||
|
|
||||
|
|
||||
|
|
||||
|
|||||
|
|||||
 |
|||||
Telephone hooter is connected in series with the telephone line. It gives a amplified audio ringer output for all incoming calls. Total isolated circuit. Zero Voice interference, Widely Used in noisy shop floor, and industries with high sound level. |
|||||
Cut Out Size |
96mm*96mm |
||||
Voltage |
12V ac/Dc, 24Vac/Dc, 48V Ac/Dc, 110v Ac, 220v Ac |
||||
Total O/P |
Ringer |
||||
Visual O/P |
Yes |
||||
|
|
