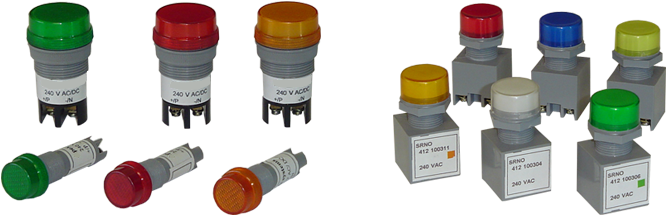

LED Indicating Lamps

LED Indicators (Solid State) manufactured in line with ISO 9001:2000 standards ensures consistent quality and is ideal for control panels (both MCC's and Instrumentation) and machines.
.

LED Indicating Lamps
LED Indicating Lamps
LED Indicating Lamps

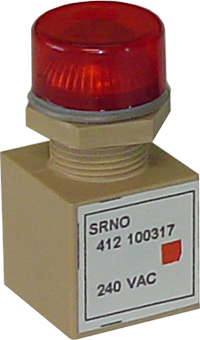

Technical Specification



PARAMETERS

STANDARD

LED Indicating Lamps

Operating Voltage

AC - 12 / 24 / 110 / 220 / 415
DC - 12 / 24 / 110 / 220

Colour

Red / Green / Amber / Yellow / White / Blue

Body Material

ABS

Lense Material

Poly Carbonate

Cutout Dimensions

22.5 mm

Terminals

1.5 sq. mm

Body Shape

Square

Legends

R, Y. B, ON, OFF & TRIP, CUSTOM BUILT

Flashing

NA

Sound (Built in Buzzer)

NA

Power Consumed

16mA@ 24 VDC

Dimension in mm

L1 L2 L3 D1 D2 W1 H1
65 16 32 30 21.5 32 32

LED INDICATING LAMPS WITH LEGEND

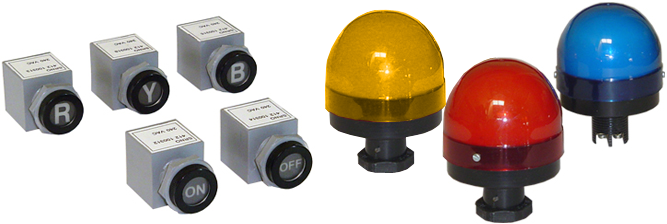

In addition to all the features of the above lamps it has IN-BUILT LEGENDS. Standard legends available are "R", "Y" & "B" for Phase Indication and "ON" & "OFF". Legends of your choice can be custom built for a minimum order quantity of 50 nos.

LED FLASHERS
These flashers when given supply will continuously flash with a 1 sec delay. Apt for control panel applications like "TRIP", "HIGH" & "LOW" Indications. In case of PLC's we can save one of its output if it is being used for flashing of a lamp. This output can then be optimally used elsewhere for better and more important applications.

LED BUZZER FLASHERS
Has the dual ability of FLASHING AND GIVING AN AUDIO OUTPUT from a single unit. It is the only product of its kind, which gives you both indications in just 22.5mmØ. Useful for end-of-operation applications, Control desks and also where space is a constraint.

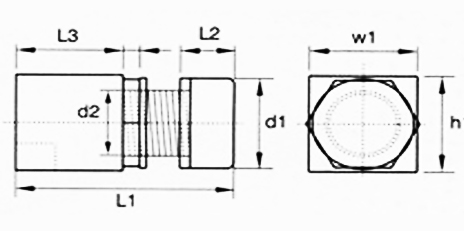

Dimensional Diagram of Standard :
led indicating lamp diagram


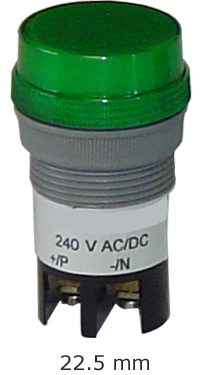

Technical Specification



PARAMETERS

SUPER

LED Indicating Lamps

Operating Voltage

AC - 12 / 24 / 110 / 220 / 415
DC - 12 / 24 / 110 / 220

Colour

Red / Green / Amber / Yellow / White / Blue

Body Material

ABS

Lense Material

Poly Carbonate

Cutout Dimensions

16 mm, 22.5 mm,30 mm Ø

Terminals

1.5 sq. mm

Body Shape

Square (only22.5 mm cut out) / Round

Legends

R, Y. B, ON, OFF & TRIP

Flashing

Optional

Sound (Built in Buzzer)

Optional

Power Consumed

16mA@ 24 VDC

Dimension in mm

    L1 L2 D1 D2 D3
Round 16 66 12 20 16 14
  22.5 61 15 30 21.5 20
  30 15 15 34 29 28

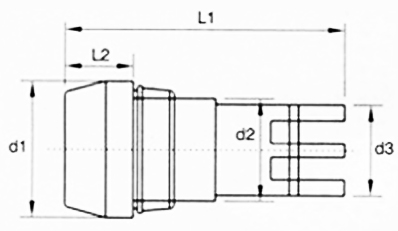

Dimensional Diagram of Super :
super diagram



Technical Specification



PARAMETERS

DOME

LED Indicating Lamps

Operating Voltage

AC - 12 / 24 / 110 / 220 / 415
DC - 24 / 110

Colour

Red / Green / Amber / Blue

Body Material

ABS

Lense Material

Poly Carbonate

Cutout Dimensions

22.5 mm Ø

Terminals

1.5 sq. mm

Body Shape

Dome

Legends

NA

Flashing

Optional

Sound (Built in Buzzer)

NA

Power Consumed

60mA@ 24 VDC

Dimension in mm

L1 L2 D1 D2
75 24 62 21

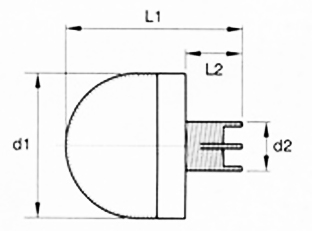

Dimensional Diagram of Dome :

dome diagram

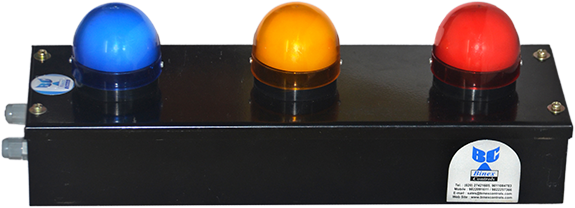

LED BUSBAR BULBS

LED Bus Bar Indicators with check nut Panel type / Pin Type Mounting is a direct replacement to the 25/60 W filament bulbs 220V AC (Pin Type Holder). Gives a very long life. Extremely Low power consumption and totally vibration proof. Can be used on Over Head / EOT cranes / hoists where replacement of bulbs is extremely difficult also is used as Panel type indication, which is available in Flashing Type. Voltages available: 12 TO 220 VAC/DC 440VDC, also available in 22.5 Ø cut out panel mounting type. These lamps dissipate negligible heat, Power consumption is 90% less than a filament type lamp the body is made of ABS Plastic Polycarbonate unbreakable lense.


LED BUSBAR BULBS

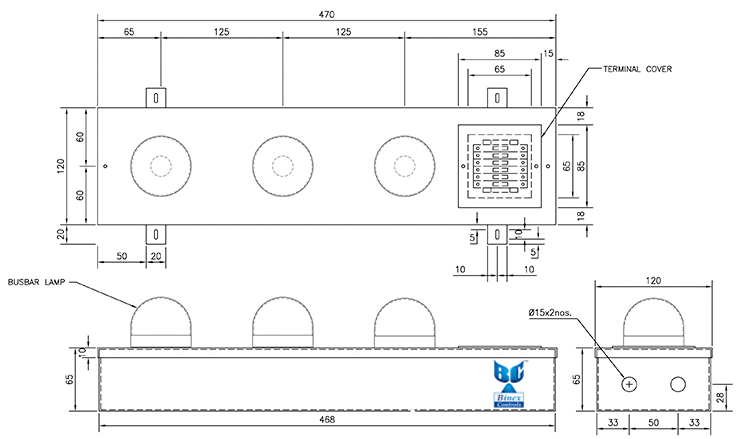

Dimensional Diagram of Led Busbar Bulbs :

busbar panel set dimension


Technical Specification



Body Shape

Rectangle

LED Announciation Windows

Voltage

24, 110, 220, V AC, 24 V DC

Cutout

54x44 mm

Display Area

50x39mm

MOC

ABS

Terminals

2.5 sq.mm.Steady / Flashing

LED Announciation Windows
These are also L.E.D. based with a cut out size of 54.5 x 43mm. Can be used for replacement of existing windows and has a very long life. Saves you the hassles of replacing bulbs all the time.
