Hengstler Encoders

Absolute Rotary Encoders

REQUEST A QUOTE
ACURO AC58
• Single-turn and multi-turn absolute encoders
• Broad temperature range: -40 to +100°C
• Resolution: up to 34 bits (22 bits in single-turn, 12 bits in multi-turn, depending upon interface)
• Compact construction: 50 mm long
• High EMC compatibility
• Various bus connections: SSI, BiSS, EtherCAT, Profibus, CANopen, CANlayer2, DeviceNet, Interbus and SUCOnet.

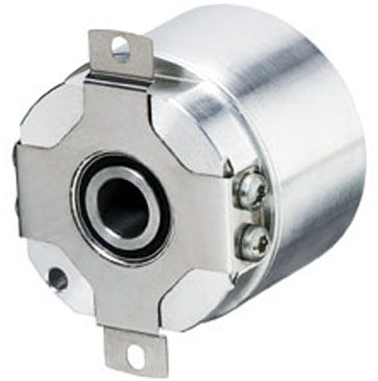

ACURO AD36
• For brushless servomotors
• Installation compatible with resolver size 15
• With 8 mm through hollow shaft
• 19 bits single-turn + 12 bits multi-turn
• +120°C operating temperature
• 10,000 rpm in continuous operation
• Geared optical multi-turn
• SSI or BiSS interface
• Sinewave 1 Vpp
• 500 kHz bandwidth
Absolute Rotary Encoders



Incremental Rotary Encoders

REQUEST A QUOTE
ICURO RI58
• Universal industrial rotary encoders
• Up to 40,000 steps with 10,000 lines
• High degree of signal accuracy
• Ingress protection up to IP67
• Fits most applications due to many flange and connection options
• Suitable for high shock loads
• Typical fields of application are machine tools, CNC axes, Packaging machines, Motors/ drives, Injection moulding machines,
  Sawing machines
• For EX applications, see RX 70-l
• Operating temperature up to 100°C (RI 58-T)


Incremental Rotary Encoders


ICURO RI76
• Through hollow shaft Ø 15 to 42 mm
• Outer diameter only 76 mm
• Easy to install thanks to clamping ring at front or rear
• Operating temperature up to 100°C
• Fields of application e.g. motors, Printing machines, Lifts


Incremental Rotary Encoders


Magnetic Encoders

REQUEST A QUOTE

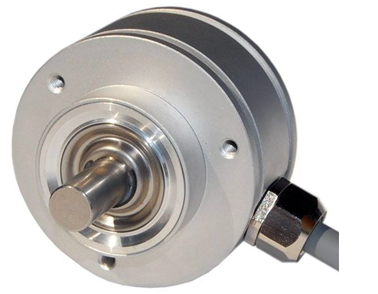

ACURO AR62
• Single-turn and multi-turn: Resolution up to 28 bits
• Wear-free electronic multi-turn: contact-less and battery-less, energy independent
• 300 N axial and radial load
• 200 g shock-resistance/ 20 g vibration-resistance
• Suitable for use with high-pressure cleaners: Ingress protection up to IP 69K
• Broad temperature range: -40 to +100°C
• Compact design: 32 mm mounting depth
• Aluminium housing
• Suitable for maritime applications (DNV approved)

Magnetic Encoders

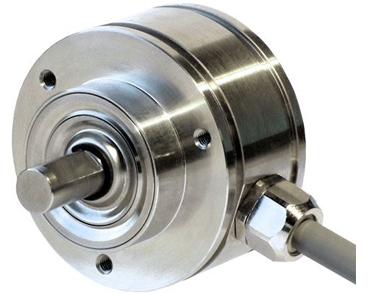

ACURO AR63
• Single-turn and multi-turn: Resolution up to 28 bits
• Wear-free electronic multi-turn: contact-less and battery-less, energy independent
• 300 N axial and radial load
• 200 g shock-resistance/ 20 g vibration-resistance
• Suitable for use with high-pressure cleaners: Ingress protection up to IP 69K
• Broad temperature range: -40 to +100°C
• Compact design: 32 mm mounting depth
• Stainless steel housing
• Suitable for maritime applications (DNV approved)

Magnetic Encoders


Sin / Cos Rotary Encoders - S21

REQUEST A QUOTE

Accurate sinewave rotary encoders by HENGSTLER are a preferred choice in drives with high dynamics thanks to their low harmonic distortion. They have excellent immunity to interference and high functional dependability due to control and system monitoring. The broad working temperature range means the motor can be used to capacity more effectively.

• Broad range of working temperature, -15 to +120°C, Optimum exploitation of motor capacity
• Unequalled bandwidth of 500 kHz at full signal quality, Peak speeds and reduction in unproductive downtime
• Excellent immunity to interference (EN61000-4-4 severity 4)
• High functional dependability through signal control and system monitoring (undervoltage, contamination, Disc breakage,
  End of LED life-time)
• High signal quality through control and error compensation

Sin / Cos Rotary Encoders

Ex Rotary Encoders (ATEX / IECEx)

REQUEST A QUOTE

ICURO RX70
•  Explosion protection for Zones 1 and 21
• Highest available dependability
• Up to 10,000 lines
• Available as stainless steel version RX71 (RX 70TI)
• Typical applications: paintshops, Surface machining plant, Bagging installations, Mixing plant, Silo installations

Ex Rotary Encoders

ACURO AX65
• ATEX and IECEx certification for Gas, Dust and Mining
• Most compact design of its class: 59 mm housing diameter / 70 mm mounting depth
• Extreme robust design
• 300 N axial and radial load
• 200 g shock resistance / 30 g vibrations resistance
• Protection class up to IP66 / IP67
• Easy field installation
• Terminal box with cage clamp technology
• Interfaces: SSI and CANopen

Ex Rotary Encoders


Accessories

MEASURING WHEELS
General information

In order to prevent the result being distorted when the shaft encoder is driven by a measuring wheel make sure that the slip is as small as possible. When selecting the tread (surface), take into account the structure, stretchability, thickness, and resistance to being carried along of the material being measured. The slip is also affected by the width of the measuring wheel, the contact pressure, the tension in the material being measured, and the arc of contact. The arc of contact should be as large as possible. The wheel bodies are made of cast aluminium or plastic (as marked). The position of the measuring wheel should be chosen so that the direction of movement of the material is away from the shaft encoder’s bearing point.

MEASURING WHEELS

Tread 1
With rim and fine crosshatched knurl Material: aluminium
Applications such as threads and yarns
MEASURING WHEELS
Tread 2
With glued-on rubber profile
A = soft specially clinging rubber surface (red)
B = low-wear rubber surface with good grip (white)
Applications such as paper and cardboard, measuring cables, nongreasy metals, fleece, undressed or surface-treated wood, soft and hard plastics.
MEASURING WHEELS
Tread 3
Vulcanized rubber surface with parallel knurl
Applications such as rubber, leather, fabrics, flooring and glass.
MEASURING WHEELS
Tread 4
Aluminium with parallel knurl
Applications such as rubber, soft plastics, wood with rough surface, and to a limited extent for fabrics.
MEASURING WHEELS
Tread 5
With rim, aluminium with parallel knurl
Applications such as threads, yarns and bands.
MEASURING WHEELS
Tread 6
Plastic surface
Applications such as wire, greasy metals, and steel sections.
MEASURING WHEELS


FLEXIBLE COUPLINGS
Absolute Encoders - ACURO AC36

Bellows Couplings

Disk Couplings Isolated Disk Couplings

Plastic Couplings

Helical Couplings

Bellows Couplings
Disk Couplings
Isolated Disk Couplings
Plastic Couplings
Helical Couplings

Technical Specification

Bellows Couplings

6 mm / 6 mm

Disk Couplings

6 mm / 6 mm

Isolated Disk Couplings

6 mm / 6 mm

Isolated Disk Couplings

6 mm / 10 mm

Plastic Couplings

5 mm / 6 mm

Plastic Couplings

6 mm / 6 mm

Helical Couplings (19/28)

5 mm / 6 mm

Helical Couplings (19/28)

6 mm / 6 mm

Helical Couplings (25/32)

6 mm / 9,53 mm
Helical Couplings (25/32) 6 mm / 10 mm


FLEXIBLE COUPLINGS
Incremental Encoders - ICURO RI58

Bellows Couplings

Disk Couplings Isolated Disk Couplings

Plastic Couplings

Helical Couplings

Bellows Couplings
Disk Couplings
Isolated Disk Couplings
Plastic Couplings
Helical Couplings

Technical Specification

Bellows Couplings

12 mm / 12 mm

Bellows Couplings

10 mm / 10 mm

Bellows Couplings

9.53 mm / 9.53 mm

Bellows Couplings

6 mm / 6 mm

Bellows Couplings

8 mm / 10 mm

Disk Couplings

6 mm / 6 mm

Helical Couplings 19/28

5 mm / 5 mm

Helical Couplings 19/28

5 mm / 6 mm

Helical Couplings 19/28

6 mm / 6 mm

Helical Couplings 19/28

6.35 mm / 6.35 mm

Helical Couplings 25/32

6 mm / 9.53 mm

Helical Couplings 25/32

6 mm / 10 mm

Helical Couplings 25/32

6.35 mm / 9.52 mm

Helical Couplings 25/32

10 mm / 12 mm

Helical Couplings 25/32

10 mm / 10 mm

Isolated Disk Couplings

6 mm / 6 mm

Isolated Disk Couplings

6 mm / 10 mm

Isolated Disk Couplings

6 mm / 9.53 mm

Isolated Disk Couplings

6.35 mm / 6.35 mm

Isolated Disk Couplings

7 mm / 7 mm

Isolated Disk Couplings

10 mm / 10 mm

Plastic Couplings

5 mm / 6 mm

Plastic Couplings

6 mm / 6 mm

Plastic Couplings

5 mm / 5 mm
