Switch Mode Power Supplies - SMPS

REQUEST A QUOTE

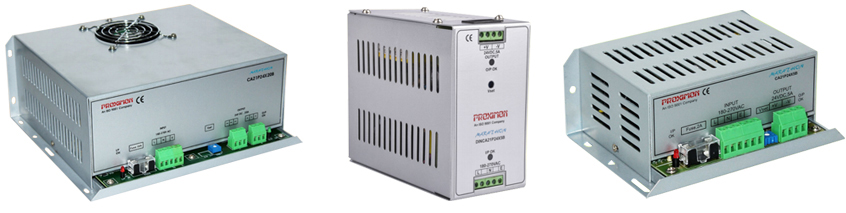

Switch Mode Power Supplies are designed with unique state of the art current mode PWM technology to obtain precise regulated output voltage at rated power.These “Switch Mode Power Supplies” are specially designed to work in harsh industrial environment, specifically for use in Indian power line conditions.

Due to its exhaustive range, these Marathon series SMPS are in great demand in wide spectrum of industries like Instrumentation, Office Automation, Telecom, Medical Electronics, Railways, Fire Alarm Systems, Control Panels, Research Institute, Process industries, Engineering Industries etc.
.
SMPS

Technical Specification



Input Voltage

90 - 135 VAC / 185 -270 VAC or 90 -270 VAC

Input Frequency

47 - 63 Hz

Output Voltage

24 VDC (+/- 10% ADJ)
12 VDC (+/- 10% ADJ)
Overload, Short circuit, Over voltage, Over temperature protection.
Onboard EMI / RFI filter
Line Fuse protection

Efficiency

Typical 85%

Operating Temp.

Upto 50°C @ 100%, 50 - 60°C@ 80%

Withstand Voltage

I/P - O/P : 1.5 KV, I/P - FG : 1.5 KV

Ripple & Noise

< + / - 1%

Line & Load Regulation

< + / - 0.5



Models List

Model No.

I/P O/P

Enclosure (H x W x D in mm)

A11P24X02B 90-135VAC 24V/2.5A 60 x 152 x 108
A11P24X5B   24V/5A 60 x 152 x 108
A11P24X10B   24V/10A 96 x 172 x 122



A21P5X6B 180-270VAC 5V/6A 60 x 152 x 108
A21P5X10B   5V/10A 60 x 152 x 108
A21P5X20B   5V/20A 96 x 172 x 122
A21P5R3B   5-9V/3A 60 x 152 x 108
A21P10R4B   10-15V/4A 60 x 152 x 108
A21P6R5B   6-12V/5A 60 x 152 x 108
A21P6R10B   6-12V/10A 96 x 172 x 122
A21P6R20B   6-12V/20A 96 x 172 x 122
A21P12X0.8B   12V/800mA 32 x 55 x 40
A21P12X3B   12V/3A 38 x 45 x 125
A21P12X5B   12V/5A 60x152x108
A21P12X10B   12V/10A 96 x 172 x 122
A21P12X20B   12V/20A 96 x 172 x 122
A21P18R5B   12-18V/5A 60 x 152 x 108
A21P18R10B   12-18V/10A 96 x 172 x 122
A21P12R5B   12-24V/5A 60 x 152 x 108
A21P12R10B   12-24V/10A 96 x 172 x 122
A21P24X1B   24V/1A 38 x 45 x 125
A21P24X02B   24V/2.5A 60 x 152 x 108
A21P24X5B   24V/5A 60 x 152 x 108
A21P24X06B   24V/6.25A 65 x 172 x 116
A21P24X10B   24V/10A 96 x 172 x 122
A21P24X15B   24V/15A 96 x 172 x 122
A21P24X20B   24V/20A 96 x 240 x 210
A21P24X30B   24V/30A 96 x 240 x 210
A21P28X4B   28V/4A 60 x 152 x 108
A21P28X10B   28V/10A 96 x 172 x 122
A21P48X5B   48V/5A 96x172x122
A21P48X10B   48V/10A 96 x 240 x 210
A21P48X15B   48V/15A 96x240x210
A21P110X1B   110V/1A 96 x 172 x 122




Model No.

I/P O/P

Open PCB (H x W x D in mm)

A21P5X2N 180-270VAC 5V/2A 45 x 60 x 110
A21P12X2N   12V/2A 45 x 60 x 110
A21P14R10N   14-24V/10A 55 x 165 x 135




Model No.

I/P O/P

Enclosure (H x W x D in mm)

D24E48X10B 24VDC 48V/10A 100 x 290 x 305
D110E24X02B 110VDC 24V/2.5A 60 x 152 x 108
D110E24X5B 110VDC 24V/5A 60 x 152 x 108




Model No.

I/P O/P

Enclosure (H x W x D in mm)

AU1P24X3B 90-270VAC 24V/3A 60 x 152 x 108
AU1P12X5B   12V/5A 60 x 152 x 108




Model No.

I/P Multiple output

Open PCB (H x W x D in mm)

    O/P1 O/P2 O/P3
220367M10 180-270VAC 5V/1A +12V/0.5A -12V/0.5A 45 x 120 x 100
220367M20 180-270VAC 12V/0.5A 24V/2A   45 x 130 x 85
220367M30 90-200VDC 12V/0.8A -12V/0.8A   45 x 110 x 60
220367M40 90-200VDC 5V/1A 12V/0.5A -12V/0.5A 45 x 120 x 100
220367M50 180-270VAC 5V/275mA 12V/275mA   25 x 75 x 35
220367M60 180-270VAC 5V/3A +12V/1A -12V/1A 60 x 152 x 108
220367M70 180-270VAC 5V/3A 12V/1A   60 x 152 x 108
220367M80 180-270VAC
5V/0.5A
14V/1A
  45 x 110 x 60




Model No.

I/P Multiple output

Enclosure (H x W x D in mm)

    O/P1 O/P2 O/P3
220367M90 180-270VAC 5V/2A +12V/0.5A -12V/0.5A 60 x 152 x 108



Redundant / Paralleling Diode Module

Model No.

I/P Currant Rating

Din Rail (H x W x D in mm)

PC24X20AX2 12V / 24V / 48VDC Redundant - 20A
Parallel - 40 A
121 x 112 x 124



3 Phase Power Supply

Model No.

I/P O/P

(H x W x D in mm)

A41P24X10B
3 Phase (340-550VAC) 24V DC / 10A 96 x 240 x 150



Din Rail Power Supplies

Model No.

I/P O/P

Enclosure (H x W x D in mm)

DINCA11P24X02B 90-135VAC 24V/2.5A 115 x 65 x 145
DINCA11P24X5B   24V/5A 115 x 65 x 145
DINCA21P5X6B 180-270VAC 5V/6A 115 x 65 x 145
DINCA21P5X10B   5V/10A 115 x 65 x 145
DINCA21P5R3B   5-9V/3A 115 x 65 x 145
DINCA21P10R4B   10-15V/4A 115 x 65 x 145
DINCA21P6R5B   6-12V/5A 115 x 65 x 145
DINCA21P12R5B   12V/5A 115 x 65 x 145
DINCA21P18R5B   12-18V/5A 115 x 65 x 145
DINCA21P12R5B   12-24V/5A 115 x 65 x 145
DINCA21P24X02B   24V/2.5A 115 x 65 x 145
DINCA21P24X5B   24V/5A 115 x 65 x 145
DINCA21P28X4B   28V/4A 115 x 65 x 145
DINCAU1P24X3B 90-270VAC 24V/3A 115 x 65 x 145
DINCAU1P12X5B   12V/5A 115 x 65 x 145


Print Mark Sensors & Logic Controllers

REQUEST A QUOTE

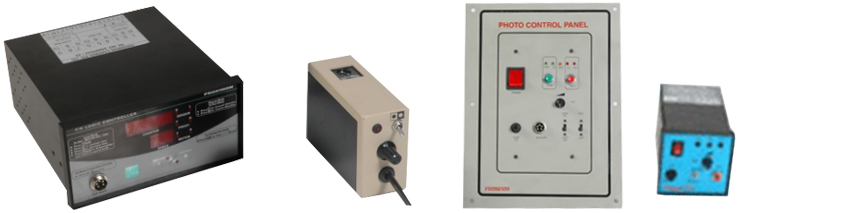

PMS - Print Mark Sensors - These are designed for sensing registration mark. It gives the signal on detecting the presence of registration mark on the moving packaging film

Forward Controller - is used in packaging machine along with Print Mark Sensor to control clutch break mechanism

For..,ard / Reverse Logic Controller - In most of the FFS (Form Fill Seal) machines, Forward Reverse Logic Controllers are used to keep correct pouch I bag length by driving correction motor (110 VAC, 4 wire) or (230 VAC, 3 wire)

Digital FIR Controllers are with built in Production Counter & Speed Indicator makes these Controllers most cost Effective
